About This

• Powerful Multi-Mode GNSS & Ultra-Fast Positioning: Powered by the high-performance UC6580 chip, it supports multi-system joint positioning (GPS, GLONASS, BDS, Galileo, NAVIC, QZSS) with L1+L5/L2 multi-band signals. Delivers rapid, accurate, and stable location data even in weak-signal environments like urban canyons or dense forests.

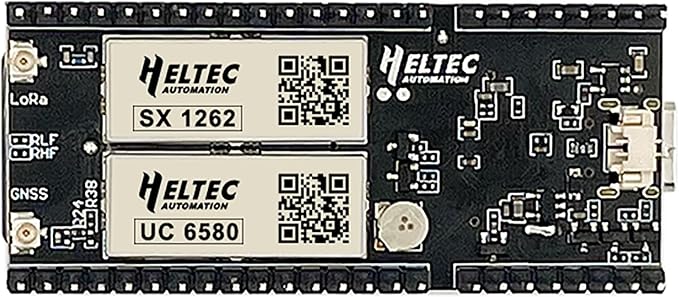

• Triple Wireless Connectivity: LoRa, Wi-Fi & Bluetooth Integrates SX1262 LoRa chip (863-928MHz, up to 21dBm), 2.4GHz Wi-Fi (802.11 b/g/n), and Bluetooth 5.0. Offers long-range LoRa communication (km-level), reliable Wi-Fi data upload, and short-range Bluetooth pairing—ideal for diverse IoT tracking applications.
• ESP32-S3 Powerful Core & Arduino Compatibility: Built around the ESP32-S3FN8 dual-core processor, it provides robust computing and ample memory. Fully compatible with the Arduino development environment, enabling fast prototyping and easy programming for users of all skill levels.
• Integrated Battery Management & Onboard LCD Display: Features a complete lithium battery management system (charging/discharging, overcharge protection, power detection, auto power switching). Equipped with a 0.96-inch 160x80 LCD for real-time status, location, battery, and debug info display.
• Compact Design & Versatile IoT Applications: Small, lightweight form factor perfect for portable and battery-powered projects. Suited for asset tracking, pet/livestock monitoring, vehicle localization, bike sharing, outdoor geolocation, and remote sensor data collection with Meshtastic & LoRaWAN support.

Overview

• Brand : Heltec Automation
• Connectivity Technology : Bluetooth, GNSS, LoRa, USB, Wi-Fi
• Included Components : LoRa Antenna x 1, SH1.25×2 Battery Connector x 1, Wireless Tracker x 1
• Operating System : Arduino IDE
• Wireless Communication Standard : 802.11bgn
